FTTH / Indoor Cables

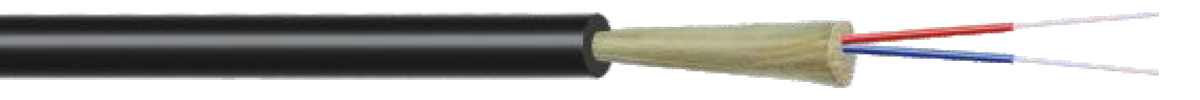

FANOUT TIGHT BUFFER UNARMORED OPTICAL FIBER CABLE (2-48F)

Application

  • —Rugged multi fiber cross connect
  • Intra building backbone
  • Fiber backbone to communication closets

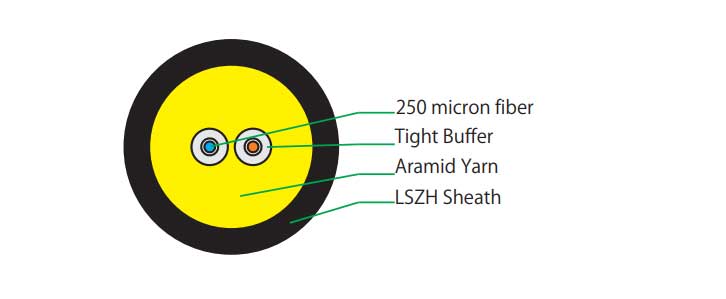

Typical Cross Section of 2F

Cable Construction Details

  • Upto 48 Fiber of Single mode fiber in full compliance with ITU-T G652D (also available with G657 SM Fiber and OM1 / OM2 / OM3 & OM4 MM Fiber)
  • Aramid Yarns as Strength Member
  • PA-12 / LSZH tight coating on Fiber
  • LSZH Compound for outer sheathing
FIBER COUNT DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operating Temporary Permanent Installation Operating
UPTO 6F 5.0 25 500 300 15D 20D -10° to +70° C -40° to +70° C
8/12F 6.8 32 500 300 15D 20D -10° to +70° C -40° to +70° C
36/48F 16.5 215 2000 1000 15D 20D -10° to +70° C -40° to +70° C

Special Features

  • Tight buffer & jacket are available in variety of colors.
  • Easy access to the fibers
  • Quick Cable Entry

Drum Length

  • 1000 meters ± 10%

Mechanical Characteristics

Torsion Resistance (IEC 60794-1-2-E7) 2 Cycle (± 360°) 1 Kg Weight, L= 2 Mtr
Crush Resistance (IEC 60794-1-2-E3) 1000 N (100 X 100 mm) for 600 sec
