OUTDOOR CABLES

FIBER TO ANTENNA, FTTA SOLUTIONS FOR RADIO BASED STATIONS

Tactical Optical Fiber Cables

Application

  • For connection of radio based stations

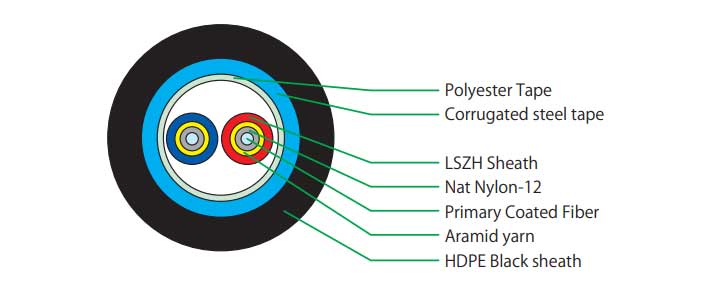

Typical Cross section of 2 Fiber

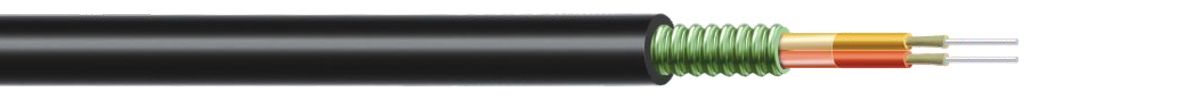

Cable Construction Details

  • Enhance low water peak single mode fibers in full compliance with ITU-T-G.652.D (also available with G657 SM Fiber and OM1 / OM2 / OM3 & OM4 MM Fiber)
  • Tight coated fiber with Ny-12/LSZH
  • Aramid Yarn over tight coated fiber
  • LSZH Sheath over Aramid yarn
  • Polyester tape wrapping
  • Corrugated Steel tape armoring
  • Outer Sheath of UV resistant PE, Black

Technical Characteristics

FIBER COUNT DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operating Temporary Permanent Installation Operating
2F 8.5 70 350 300 15D 20D -20° to +50° C -40° to +70° C

Color Coding – Fiber

  • Blue
  • Orange
  • Green
  • Brown
  • Grey
  • White
  • Red
  • Black
  • Yellow
  • Violet
  • Pink
  • Aqua

Special Features

  • Fiber-fed remote radios (RRs) offer significant power savings
  • Reduces wind and weight load on towers; avoid costly tower upgrades.
  • Reduces installation cost through fewer cables sheaths (70% less) compared to coax.
  • Reduces installation time through fewer cable sheaths.
  • Fast and easy connection and upgrade via tower-top terminal.
  • Pre-provision for future equipment additions (spare ports).
  • Ruggedized cable with corrugated steel tape armored providing termite resistance, protection against rodents, birds, squirrels & monkey bite.

Drum Length

  • 1000/2000 meters ± 5%

Mechanical Characteristics

Repeated Bending (IEC 60794-1-2-E6 30 Cycle, 20 X D, 5 Kg Load, D = Cable D
Torsion Resistance (IEC 60794-1-2-E7) 10 Cycle (± 180°) 5 Kg Weight, L= 2 Mtr
Crush Resistance (IEC 60794-1-2-E3) 2000 N (100 X 100 mm) for 600 sec
Impact Resistance (IEC 60794-1-2-E4) Height 500 mm, Weight = 5 Kg, 3 Nos at different points
Kink Resistance (IEC 60794-1-2-E10) 20 x D, D = Cable D
