FTTH / Indoor Cables

INTERCONNECT CABLES

Application

  • Communication racks and wiring closets, walls, ceilings, floor ducts, etc
  • —In the final connection to terminal devices such as workstation and computer terminals for high speed voice, video, data, and FTTx applications
  • Short run office & computer room cabling
  • Patch cords, Pigtails & Jumpers

Typical Cross Section of Simplex

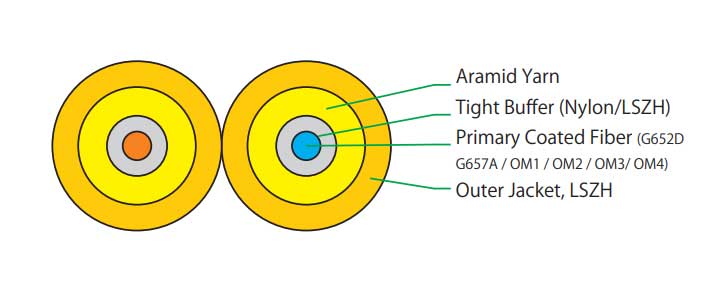

Typical Cross Section of Duplex

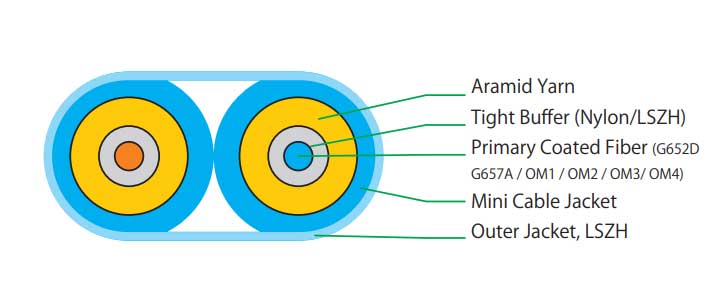

Typical Cross Section of Flat Twin

Drum Length

1000/ 2000 meters ± 5%

Cable Construction Details - Simplex

A single optical fiber is tight buffered and surrounded by aramid yarn strength member and jacketed with riser or plenum or LSZH grade jacketing to 2.0/3.0 mm diameter.

Cable Con struction Details - Duplex

Two Simplex cables 2.0/3.0 mm are joined as a figure-8 design

Cable Construction Details - Flat Twin

Duplex Zip cable (2.0/3.0 mm) is jacketed with riser, plenum or LSZH grade jacketing.
